Hydrostatic Deep Rolling Tools

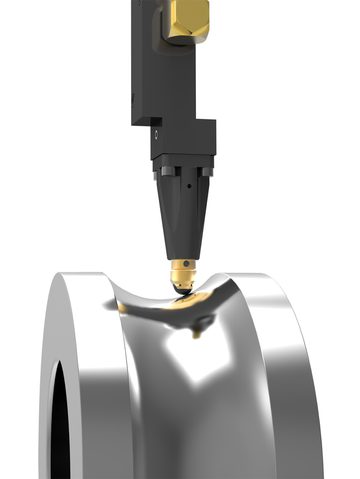

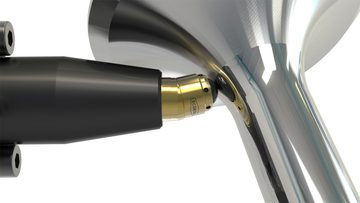

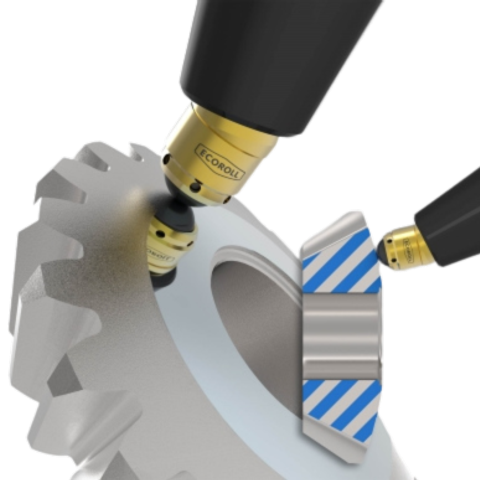

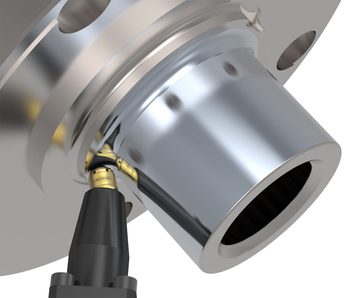

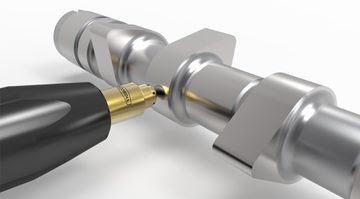

Hydrostatic tools in the ECOROLL HG range are able to roller burnish, deep roll and roller compress the most complex contours and free-form surfaces within bores and external profiles.
The heart of the HG tool is a special ball of hard material which is hydrostatically mounted in a ball holder. The ball is pressed with a defined rolling pressure against the surface of the workpiece by the pressure medium, either oil or air, in order to shape the profile. The process induces residual compressive stresses into the boundary zone, increases the strength of the material and at the same time smooths the surface.
Applications
- Roller burnishing up to 65 HRC and deep rolling
- Increase fatigue strength for internal, external diameters and fillet radii
- Follow complex contours and free-form surfaces
- Range of ball sizes available
- Uses high-pressure oil or air
Product Range
Applications
- Achieve finishes as low as 0.20µm
- Eliminate fine boring, grinding and polishing operations
- Simple set-up
- Economical long tool life with carbide roll
- Carbide roll can be refurbished
- Available with a range of metric and imperial shanks
Applications
- Combined skive & burnish tools
- Range Ø60mm to Ø400mm
- Feed rates 3 to 6 mm/rev
- Finish tube bores in a single pass
Applications
- For finishing OD surfaces and faces
- Suitable for materials to 65HRC
- Range of shanks available
- Achieve surface finishes to 0.1Ra
Applications
- Suitable for bores and shafts
- Remove need for honing, grinding, fine boring
- Finishes down to 0.1Ra
- Improve surface hardness
